Go further with increased dependability. New solid cross brace design provides stronger rigidity whilst achieving an industry leading light weight of 20.16kg.
Highest quality components throughout, increased gearbox ratio, heat sink and breathability allows for longer duty cycles when you need it most.

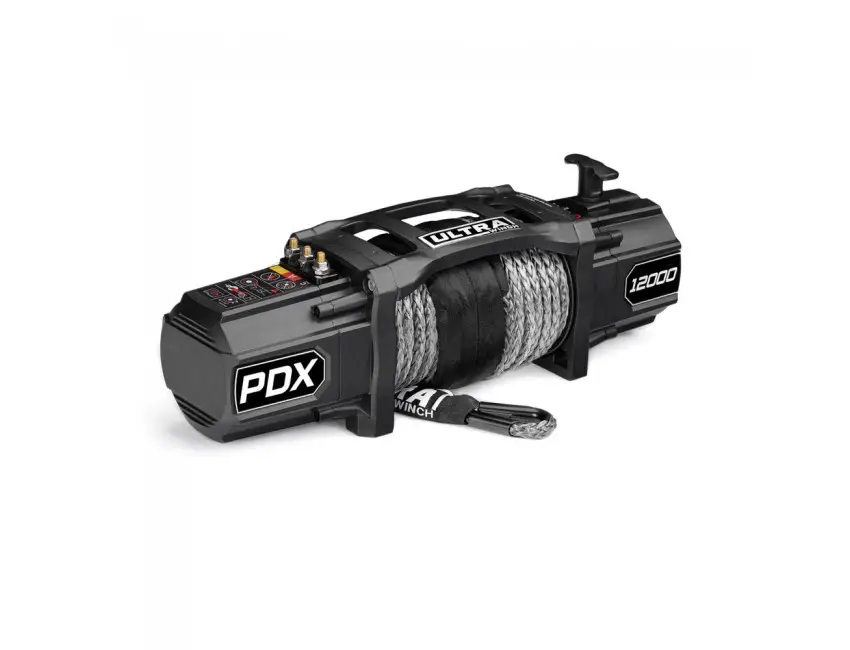

PDX MK4 – 12,000lbs / 5443 KG

• 90º Rotatable clutch housing design for easy access
• Lifetime Mechanical Warranty
• 7 Year Electrical winch Warranty
• 7 Year Water Ingress Warranty
• Wired and wireless hand remote included
• Winch hook with strap
• Fairlead included
• 235:1 Three stage planetary gearbox
• 600A Solenoid – IP67 Waterproof: Extension Wiring Relocation Kit Available (beware of exaggerated figures).
• Battery Isolation Switch – Safety Key
• 25Mx10.0mm 16,800lbs rated rope
• 20.16kg Weight with synthetic rope. 22.5kg With Controller box, wiring and bolts.

PDX MK4 UPDATES

• New Extra heavy duty wiring with protective sheathing.
• New hardened alloy gear set with molybdenum grease.
• Updated Heavy Duty solenoid.
• Mounting nuts pre fitted for easier installation.

• Smaller control box. (Relocatable. Can be installed adjacent to winch within bull bar).
• Updated synthetic rope with stronger, solid eyelet.
• New in cabin wired controller included.
• New multi fit fair lead (off set and standard orientation).
• Thicker gauge and longer length control box wiring.

WHAT’S INCLUDED

• Full Wiring Kit With Isolation Switch
• Control box with Heavy Duty Solenoid
• PDX Winch MK4 – 12,000lbs Winch
• Wired Handheld Remote – 1x
• Wired In Cabin Remote – 1x
• Wireless Remote – 1x
• Universal Fairlead (Three positions)
• Black  Heavy Duty Hook
• Breather Valve Hose Kit
• Mounting Bolts
